HT-IT512,Ф26×1180mm(4ft) 1500lm T5 Integrated LED Tube Light

LED Type: SMD3528...

Lamp efficiency: 90LM/W-100LM/W

Input voltage: AC 100-240V AC

Beam angle: 120°- 160°

Power Factor: >0.8

Ingress Protection: IP31

Color Rendering Index (CRI) : >70

HIGHTECHLED led Tube light

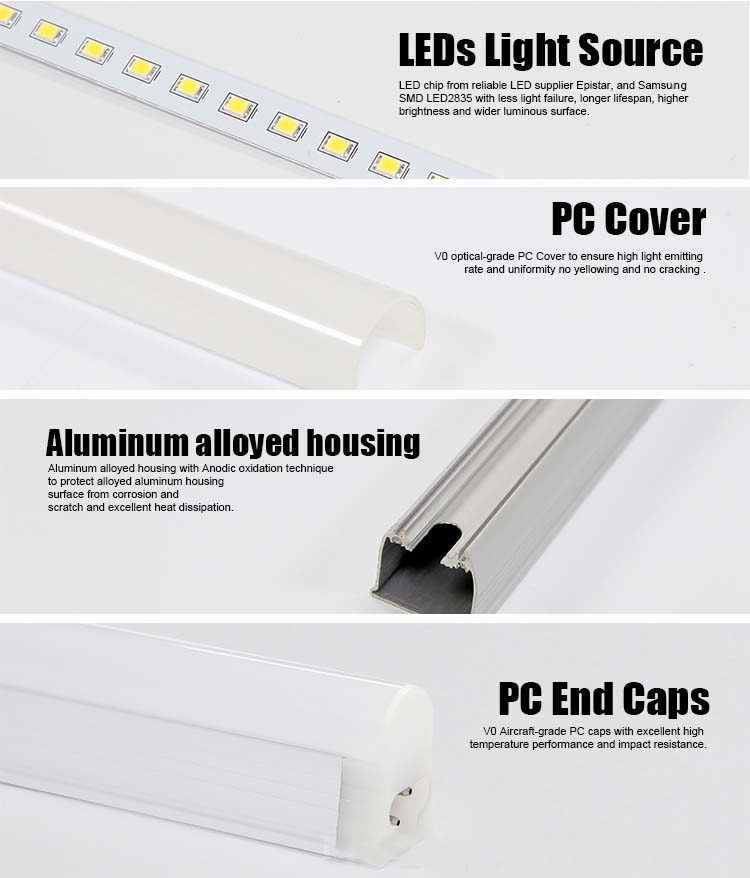

Features:

1.The T5 LED tube lights are all in compliance with CE and RoHS certification, are safe and reliable.

2.Special optics design and seamless connection with no dark area.

3. Designed with lamp and fitting integrated,easy for installation and replacement of the traditional flourscent tube;

4.Non-isolated power supply of 84% power conversion efficiency

5.Frosted lenses PC cover of 0.85-0.88 light transmittance rate

6.Anodic techniques to protect aluminum housing surface from corrosion



Product Details:

T5 Integrated LED Tube Light Model: HT-IT512
LED Lamp Max Power 16W
LED Type 3528 SMD
Lumen (LM) >1,500lm
Life Time 50,000Hrs
Viewing Angle 120°-160°
Working Temperature Range( ℃ ) -10℃~+40℃
Colour Temperature Range( K) 6000-6500K /4000-4500K
Power Factor: Range >0.8
CRI Range >70%
T5 design Product size Ф26×1180mm
Material Aluminum housing &PC cover

Integrated Tube T5 uses SMD LED2835 as light source and there are 300mm(1foot), 600mm (2 feet), 900mm (3 feet), 1200mm (4 feet), 1500mm (5 feet) available.With longer lifespan (>50,000hours), higher brightness and less toxic substance, Integrated Tube T5 can be widely used in traditional fluorescent tube lights retrofit and replacement.

hitechled T5 all in one integrated LED tube light
