HT-IPL-0303,300mm*300mm LED panel LightPower: 18W / 27W ...
Lamp efficiency: 80-100LM/W
Input voltage: AC 85-270V AC
Beam angle: 120°
Power Factor: >0.95
Ingress Protection: IP31
Color Rendering Index (CRI) : >80
hitechled led panel light,panel de led
Features:
♦ 1.Super bright LED with high efficiency (>100lm/W) as light source, saving 65% energy comparing to traditional grid light
♦ 2.Stable quality LEDs with little lumen decrease
♦ 3.The Tj for LED is less than 85°C
♦ 4.Long life time(>50,000hours)
♦ 5.Free from mercury, lead, and carbon emission
♦ 6.Low maintenance and replacement costs
♦ 7.Fixture surface with anti-static spray, resistance to acid, anticorrosive

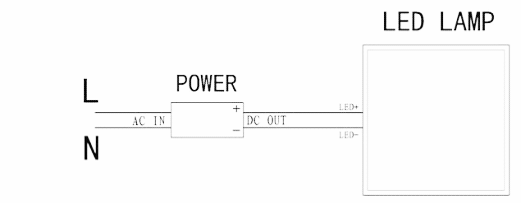

Power connection diagram:

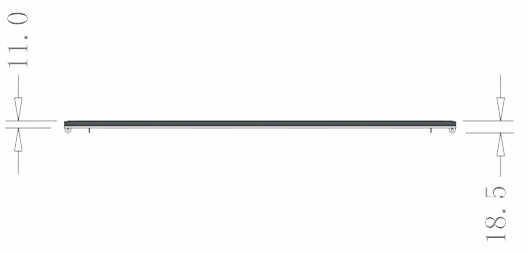

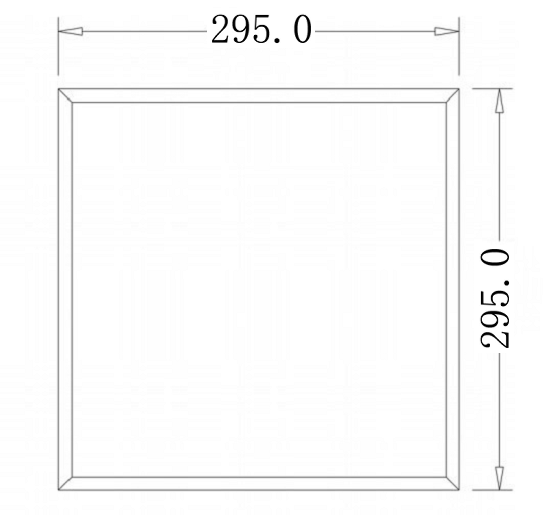

Product Size:
| LED Panel Light | Model: HT-IPL-0303 | |
| LED Lamp | Max Power | 18W / 27W |
| LED Chip Brand | Epistar/Samsung... | |
| Lumen (LM) | >1,400lm-1,600lm(18w) / 2,300lm-2,500lm(27w)... | |
| Life Time | 50,000Hrs | |
| Viewing Angle | 120° | |
| Material | Body | Aluminum alloy frame and PMMA cover |
| Working Temperature | Range( ℃ ) | -20℃~+50℃ |
| Colour Temperature | Range( K) | CW: 5500-6500K / NW: 4000-4500K / WW: 2700-3500K |
| Power Factor: | Range | >0.95 |
| CRI | Range | >80% |
| Packing | Product size | 295*295*11mm |

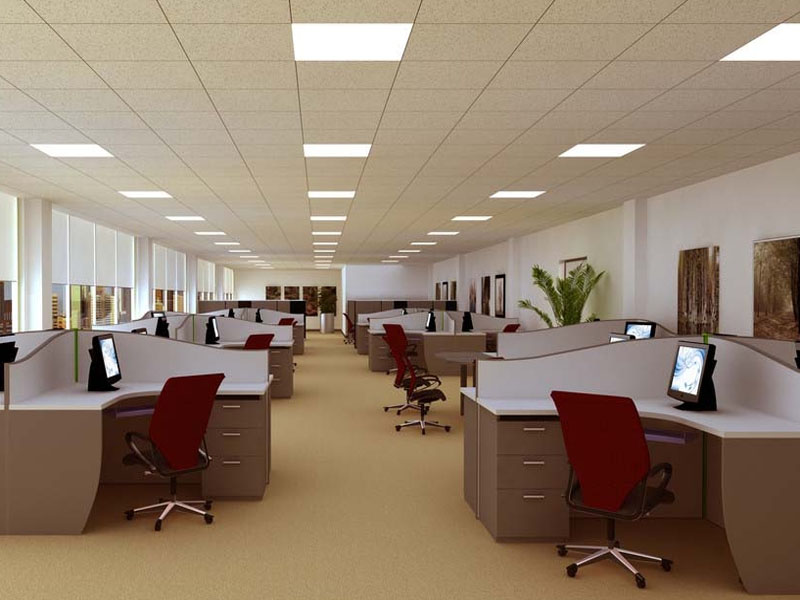

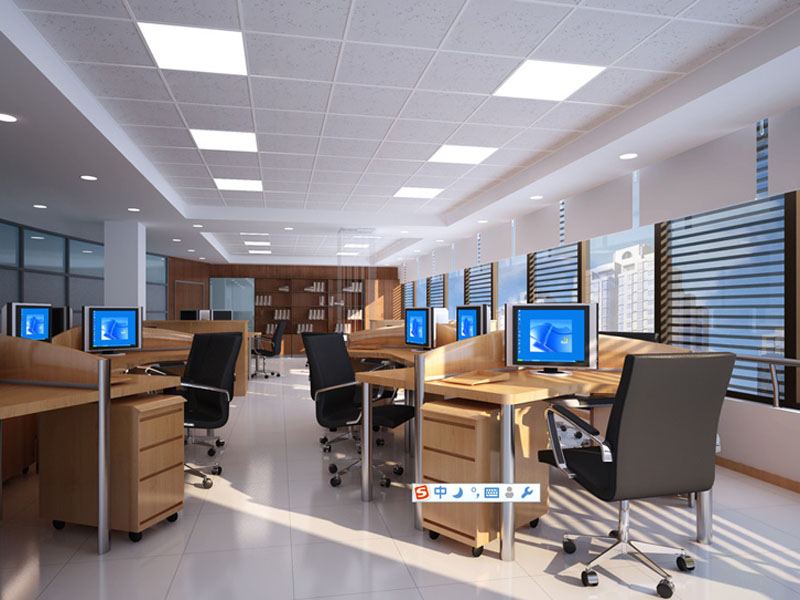

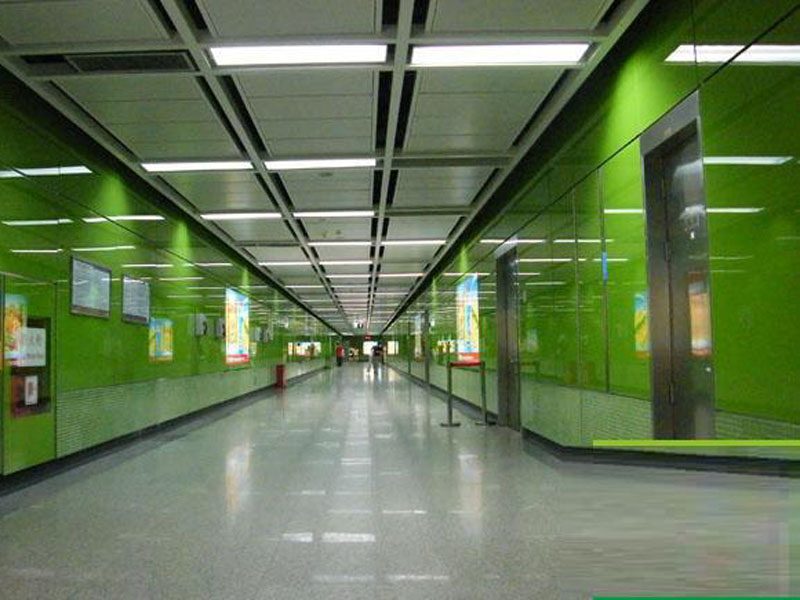

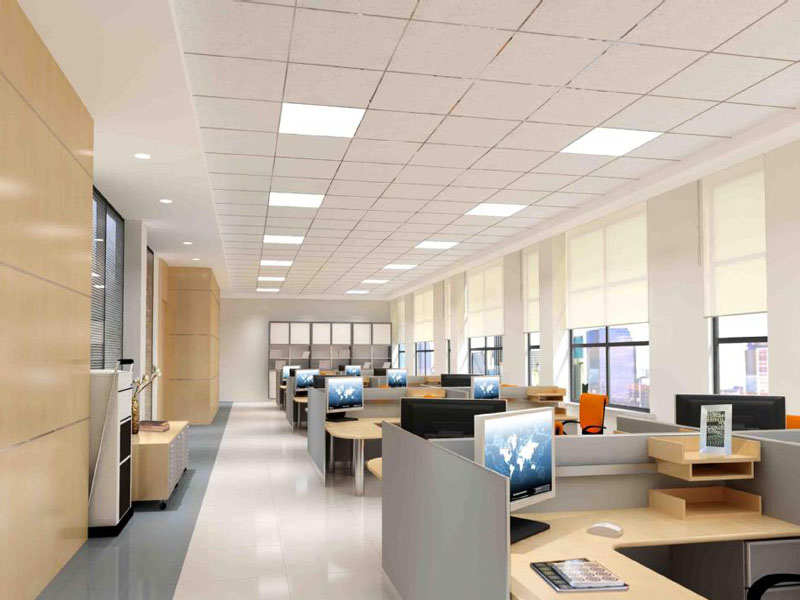

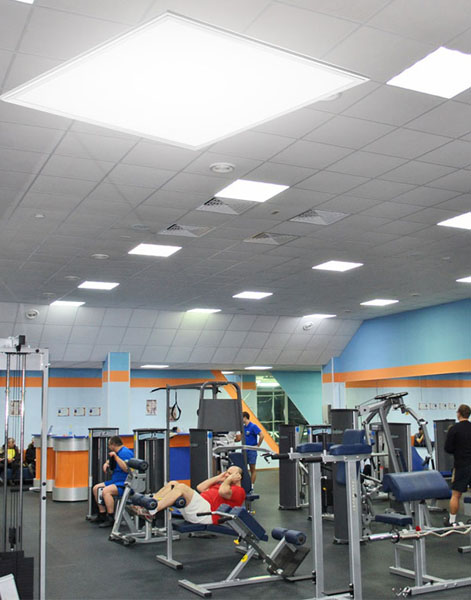

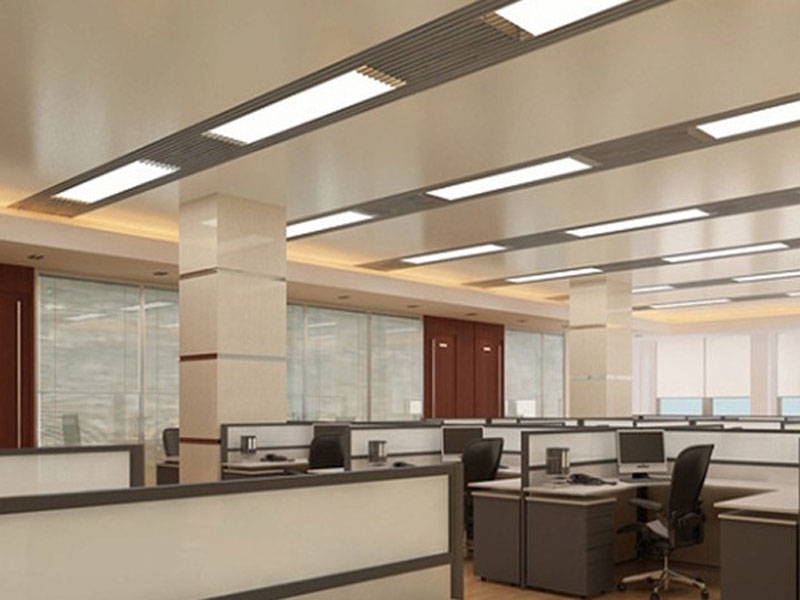

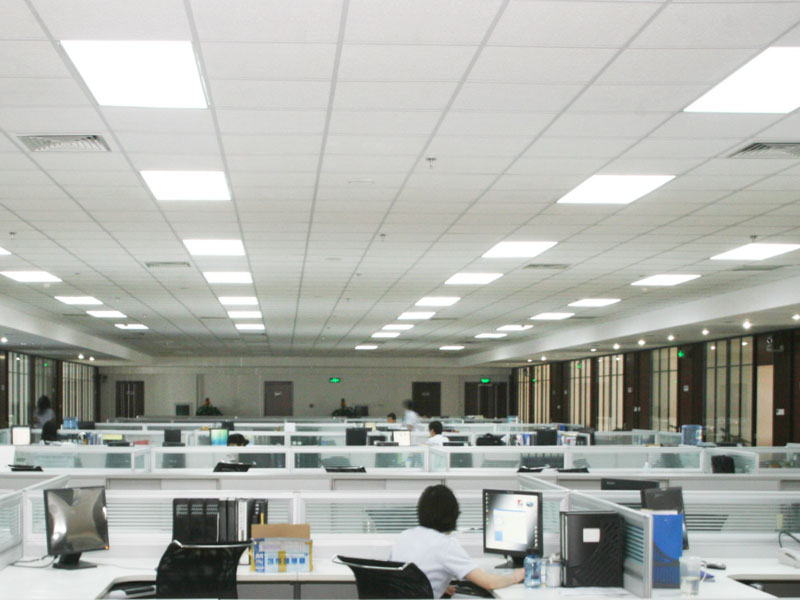

LED panel light is the best choice for office, meeting room, shopping mall, chain store, car shop, factory, hospital, school and other public entertainment place.

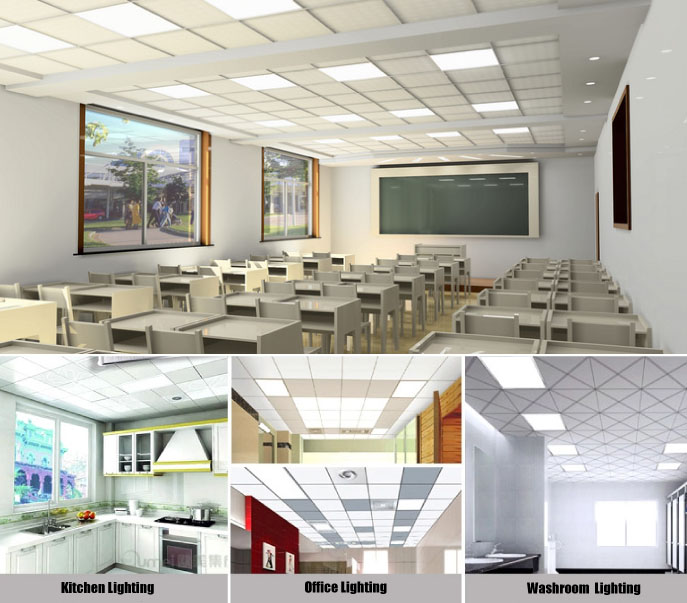

hightech led panel light,applications:office, meeting room, shopping mall, chain store, car shop, factory, hospital lighting
