HT-ZCW-RB10

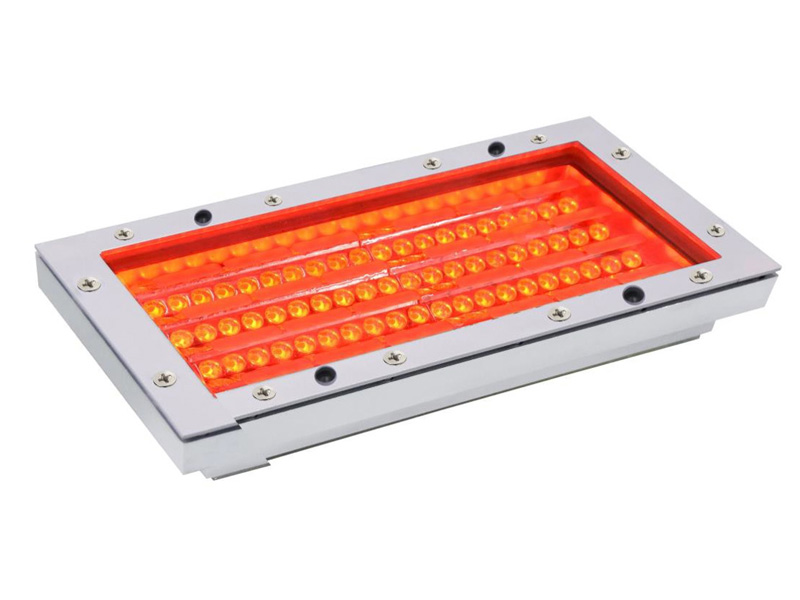

RED-GREEN UNDERGROUND BRICK-LED TRAFFIC SIGNAL LIGHT

LED Brand: Epistar

Lamp Power: 10W, Red> 320Lumen; Green> 500lumen

Input voltage: AC 100-277V AC

Working Voltage: DC24V

Power Factor: >0.95

Ingress Protection: IP67

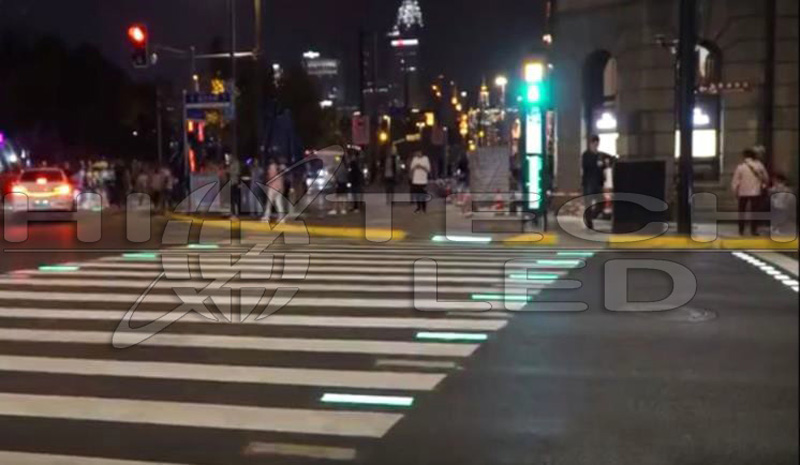

It is synchronized with the LED traffic light system. Work as secondary safety facility that controls jaywalking and secures visibility for the pedestrians.

Luz de advertencia de pavimento LED, luz de advertencia de cruce peatonal, luz de advertencia de cruce de peatones, luz de advertencia de paso de cebra, luz de advertencia de rayas de cebra, semáforos de LED

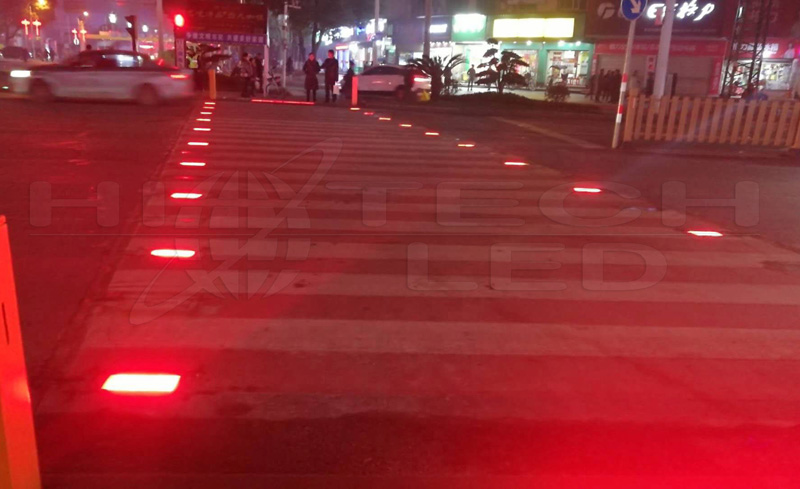

THE LED PAVEMENT WARNING LIGHT is designed for the prevention of road accidents to pedestrians.

Features:

① Special Brick-like Design for Zebra Crossing Pedestrian, our products with high brightness, can also play an eye-catching role in the daytime, Unique reflective cup polarized design, pedestrian side to see the light is Brighter, motor vehicle side to see the light is darken. with 510nm Green and 625nm Red light, good color uniformity, soft, not dazzling . The Light with the maximum brightness at daytime. automatically dimming to 40% at night by photosensitive.

② Unique circuit design, when One LED chip is damaged, it affects only one single LED, and will not cause dark area .

③Anti-high strength compression and vibration: Use 20 mm laminated double-layer bulletproof toughened glass, even if the first layer of glass is broken, the second layer will not be affected. And exclusive design with rubber spring buffer heavy truck when passing by the heavy pressure. The surface of toughened glass is provided with anti-skid design of studs.

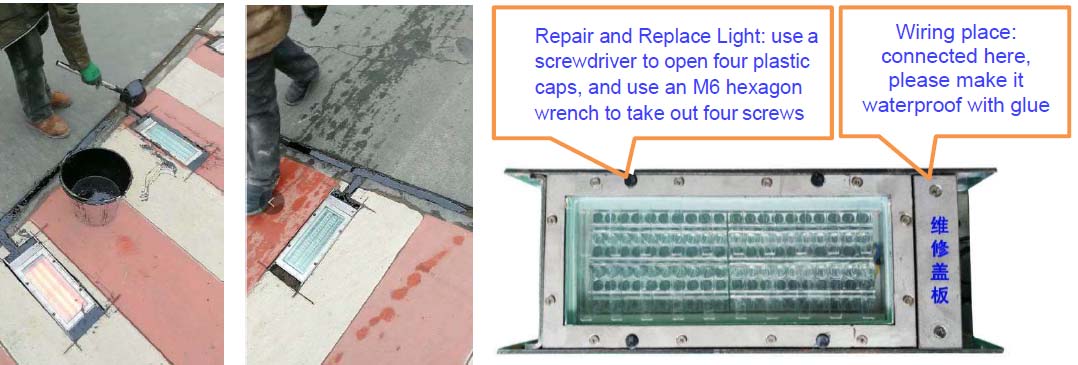

④The embedded parts easy for maintenance , There is a maintenance door at the junction; the floor tile lamp and embedded parts adopt the separable design, and the product can be taken out only by twisting four screws during replacement and maintenance.

⑤IP65 Power Supply, response time < 100ms, without delay, synchronized with pedestrian traffic lights;

⑥Best heat sink with unique buried ventilation holes; Warranty> 2 years. Power:5W~10W

⑦Novelty design with beautiful appearance, covered by 304 stainless steel surface. Friction can make it glossy.

⑧Tri-Waterproof treatment: PU Glue filling + DOW CORNING(USA) + silicone waterproof ring, IP Grade: IP67.

⑨Working Voltage:DC24V, Isolated Power Supply to ensure safety.



Installation Guide:

The project has following stages: hardware equipment in place, Broken Road cutting slot, put embedded parts installation, debugging, Road restoration, acceptance and other works. The total duration is 3-5 working days.

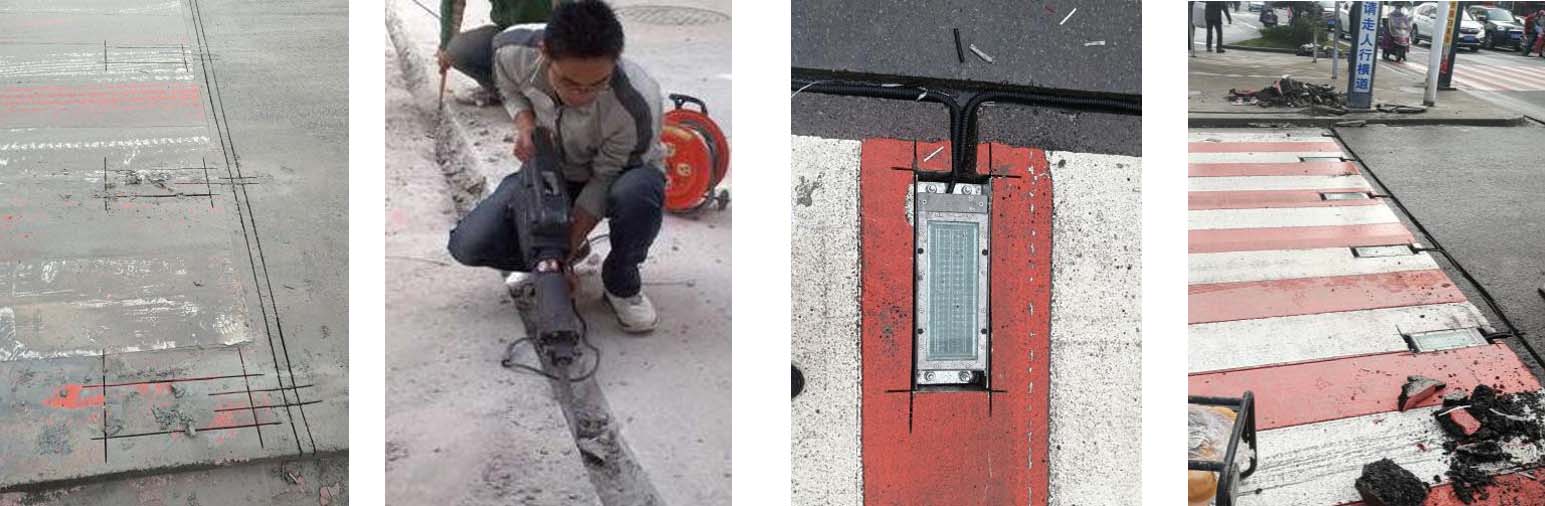

1. Road grooving: The slot size is length 430mm, width 160mm and depth 70mm. As illustrated. The location of slotting is usually arranged at two ends of the zebra crossing in the middle of the road. The wire narrower trunking is better. It is necessary to embed the conduit to protect the wire from being crushed. Iron pipe or PE corrugated pipe can be used.

in-pavement brickled traffic signal light installation

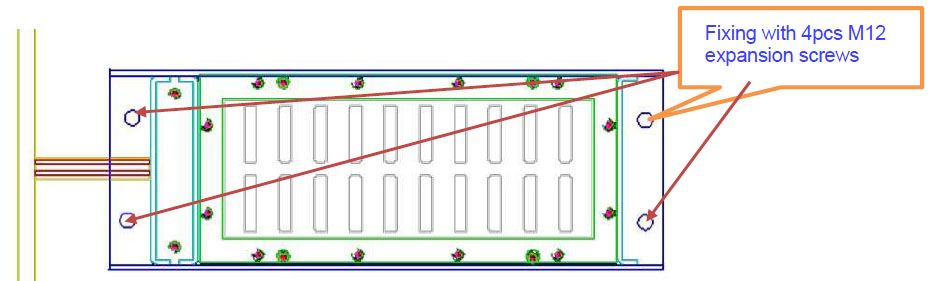

2. Laying of embedded parts: put the embedded parts into the cut groove. If the gap between the two sides is too large when cutting the groove, the two sides of the embedded parts shall be leveled with cement paste; the bottom shall be properly paved with cement mortar. For each embedded part, two M12 expansion screws need to be driven into each end, as shown in the figure:

in-pavement brickled traffic signal light installation

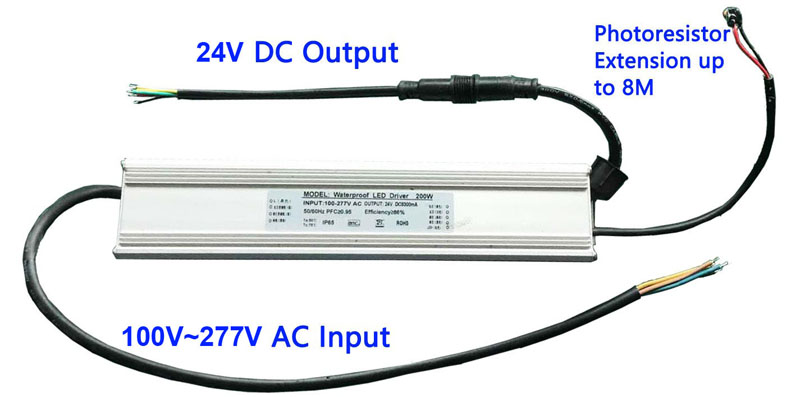

3. Power supply Install: The size of power supply is 26 cm length, 6 cm width and 5.5 cm height. The power supply is encapsulated with full-filling silica gel. waterproof grade IP66 . The power supply is slim type, which can be plugged into the lamp pole or the signal lamp shell, or install a control box on the lamp pole. Pay attention to the waterproof of the high-voltage terminal wiring to avoid leakage.

4.Connect Power Supply: Each power supply can support meter 1~22pcs brick lights.It can take 100~277V AC electricity direct from pedestrian light, Photosensitive are inside the power supply. Sensor wire can extend to 8 meter. The connection point is inside the maintenance door of embedded parts. After connecting the thread, wrap it with tape. Remember to glue and waterproof inside to avoid electrolytic oxidation of copper wire when soaking in water. (Note: If you need flashing effect, use a five-core wire. If you only need red and green conversion, use a three-core wire;) Output Pull a 3-core or 5-core 1.0 flat Wire from the power supply. The brick Lights are connected in parallel. Each Strip Light Configured with a three-way waterproof connector. After wiring, please remember to glue the waterproof connector to avoid electrolytic oxidation of the copper wire when soaking in water. The input is 4-core wire. Brown wire is connected with zero L line. Blue wire is connected with Green light. Black wire is connected with Red light and yellow & green wire is the shell ground. Output is 5-core wire. The black is positive pole. Blue wire is connected with Green light 1. Green wire is connected with Green light 2. Red wire is connected with Red light 1 and yellow Wire is connected with Red light 2.

in-pavement brickled traffic signal light installation

5.Road restoration: after the completion of wiring, asphalt shall be restored to the pavement, and asphalt shall be dripped into both sides of the floor tile lamp and the trunking.

in-pavement brickled traffic signal light installation

6. Photoresistor: There is photoresistor on the power supply. It can auto regulate the output voltage according to the environment brightness. The Photoresistor Wire can be cut and extended freely. When open circuit, it is dark mode, and when short circuit, it is high brightness mode.

7. Please consult the technicians of HITECHLED about the number of brick Light connected to each zebra crossing. Maximum power of each Strip light is 10W. If the power is over 2000W, please consider the maximum load of traffic signal controller.

Underground Brick-LED Traffic Signal Light Model: HT-ZCW-RB10
LED Lamp Power 10W(dimming at night)
LED Chip Brand Epistar
Lumen (LM) Red> 320lm; Green> 500lm
Life Time 50,000Hrs
Viewing Angle 180°
Working Temperature Range( ℃ ) -40℃~+85℃
Power Factor: Range >0.95
CRI Range >80%
Packing Product size 335x150x70mm
Carton Size L450*W170*H180mm(1pcs)

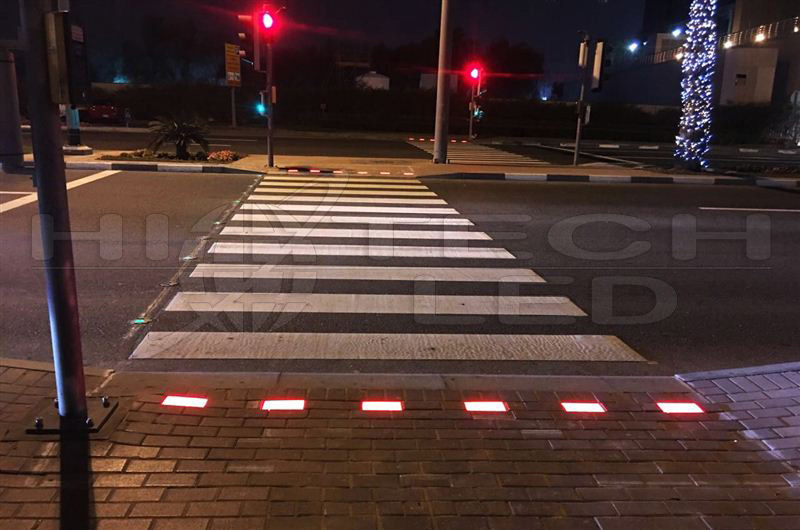

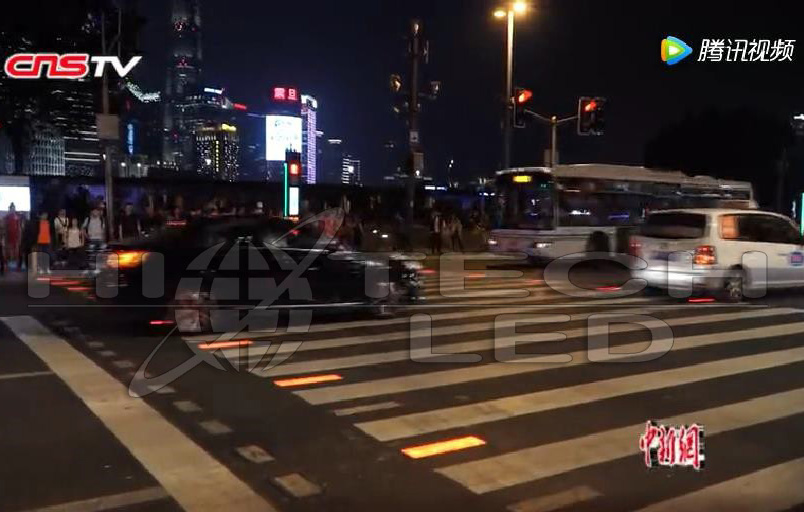

The red-green Brick-LED LED pavement warning light is designed for the prevention of road accidents to pedestrians. As secondary safety facility that controls jaywalking and secures visibility for the vulnerable (people with amblyopia or low vision) and pedestrians. It can be widely used for the crossing road,especially for factory area, school area, commerical centers,etc where people are crowded. It is Brick-like Design with high brightness.It can also play an eye-catching role in the daytime,with unique reflective cup polarized design, pedestrian side to see the light is Brighter, motor vehicle side to see the light is darken. with 510nm Green and 625nm Red light, good color uniformity, soft, not dazzling . The Light with the maximum brightness at daytime. automatically dimming to 40% at night by photosensitive.
