HT-ZCW-1M40, RED-GREEN LED PAVEMENT WARNING LIGHT

LED Brand: Epistar

Lamp Power: 12W~40W, Red> 960Lumen; Green> 1,040lumen

Input voltage: AC 90-295V AC

Working Voltage: DC36V

Power Factor: >0.95

Ingress Protection: IP67

It is synchronized with the LED traffic light system. Work as secondary safety facility that controls jaywalking and secures visibility for the pedestrians.

Luz de advertencia de pavimento LED, luz de advertencia de cruce peatonal, luz de advertencia de cruce de peatones, luz de advertencia de paso de cebra, luz de advertencia de rayas de cebra, semáforos de LED

THE LED PAVEMENT WARNING LIGHT is designed for the prevention of road accidents to pedestrians.

Features:

1. Special Design for Zebra Crossing Pedestrian, with 510nm Green and 625nm Red light, good color uniformity, soft, not dazzling . When the sun is strong, the Light with the maximum brightness. At night the brightness automatically dimming to 30% by light sensor.

2. Unique circuit design, when One LED chip is damaged, it affects only one single LED, and will not cause dark area .

3. Anti high strength compression and vibration: use 10mm frosted tempered glass, the surface is designed to prevent slippery; Own design of rubber spring for buffer the pressure when car running over the Product.

4. The embedded parts easy for maintenance , designed by self locking. When the product is replaced for repaired, Just slide the lamp bar and remove it.

5. IP67 waterproof Constant Current Power Supply, response time< 100ms, without delay, synchronized with pedestrian traffic lights;

6. Novelty design with beautiful appearance, covered by 304 stainless steel surface.



Installation Guide:

The project is divided into the following stages: hardware equipment in place, Broken Road cutting slot, put embedded parts installation, debugging, acceptance and other works. The total duration is 1-3 working days.

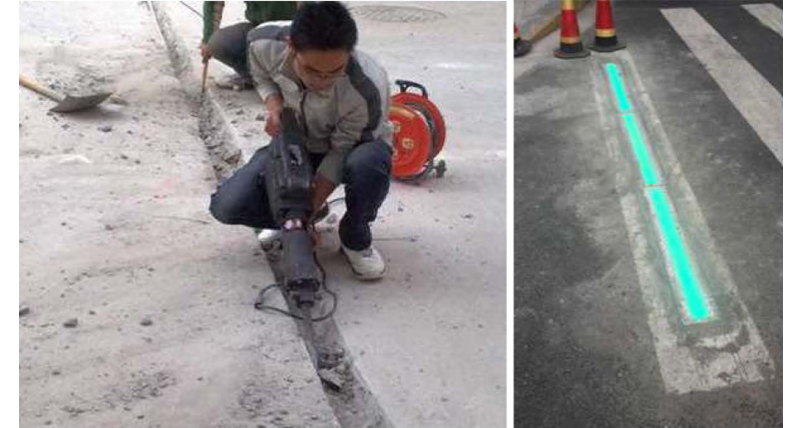

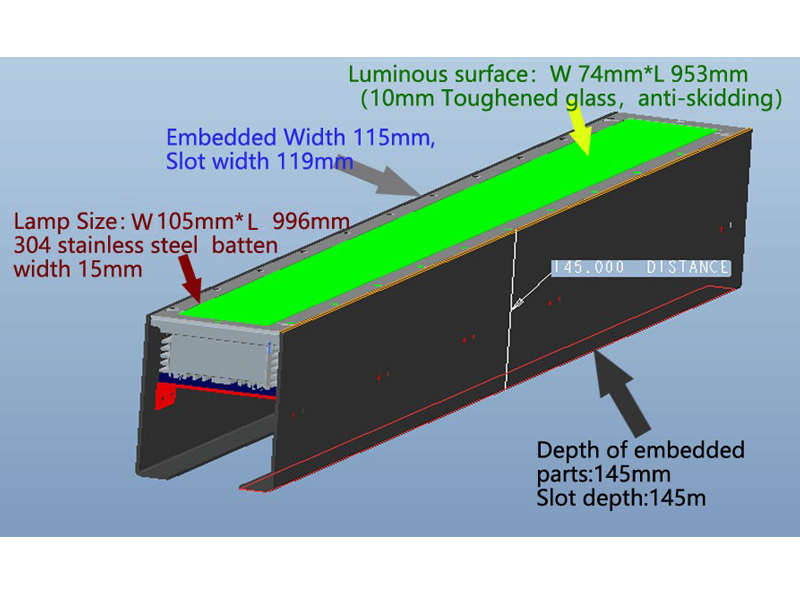

1. The slot size of zebra crossing is 1 m, 2 m, 3 m 4 m and other length, 119 mm in width and 145 mm in depth. As illustrated. The location of slotting is usually for pedestrians waiting or the first zebra crossing.

led pavement warning light installation

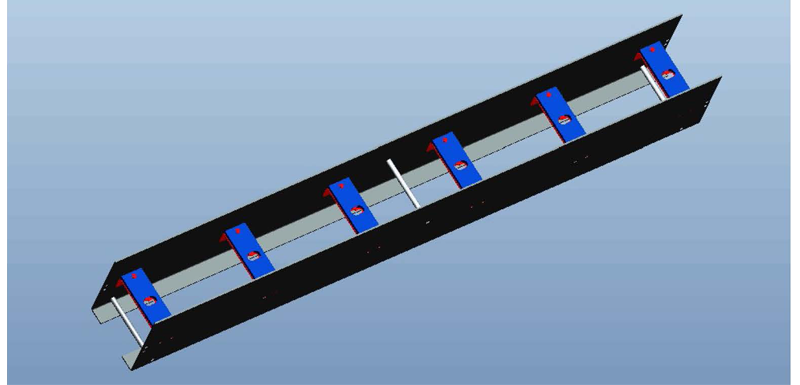

2. The embedded parts are put into the cement groove. If the slot space is too large, the two sides of the embedded parts are smoothed with cement paste appropriately.

led pavement warning light installation

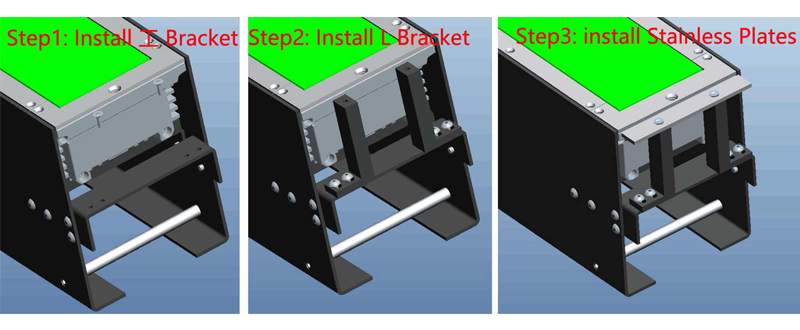

3. Put the Strip Light into the embedded part, the Wire can go from the bottom of the embedded part, push the Strip Light, let the screw under the Strip Light lock with the embedded part. At the end of each row, there will be a maintenance bracket, as shown in the following figure: when repairing, just remove the maintenance bracket, and then push the lamp to remove it.

led pavement warning light installation

4. Power supply Install: The size of power supply is 23 cm length, 12 cm width and 6 cm height. The power supply is encapsulated with full-filling silica gel. waterproof grade IP67 is not suitable for long-term immersion in water. It can be buried under the pedestrian lamp pole with a plastic sealed box (heat dissipation need not be worried) and covered with floor tiles.

5. One power supply can drive three-meter Strip light, each strip light corresponds to a three-core wire connected to the Power supply output, parallel connection, the wire color Corresponding.

6. Attention: Please consult our technicians about the number of light bars connected to each zebra crossing. Since the maximum power of each light is 40W, if the power is over 2000W, the load of traffic signal controller should be taken into account, especially when the sun shines directly during the day. The wiring must be pressed inside the connector.

Zebra Crossing Warning Light Model: HT-ZCW-1M40
LED Lamp Power 12W~40W(dimming at night)
LED Chip Brand Epistar
Lumen (LM) Red> 960lm; Green> 1,040lm
Life Time 50,000Hrs
Viewing Angle 180°
Working Temperature Range( ℃ ) -40℃~+85℃
Power Factor: Range >0.95
CRI Range >80%
Packing Product size 996x105x145mm
Carton Size L1050*W130*H180mm(1pcs)

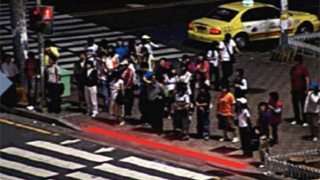

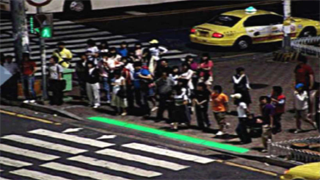

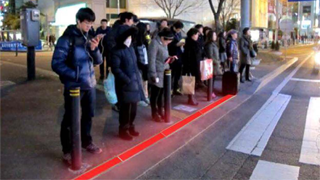

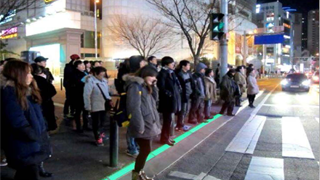

The red-green LED pavement warning light is designed for the prevention of road accidents to pedestrians. As secondary safety facility that controls jaywalking and secures visibility for the vulnerable (people with amblyopia or low vision) and pedestrians. It can be widely used for the crossing road,especially for factory area, school area, commerical centers,etc where people are crowded.
